7443640470
Manufacturer:
Wurth Electronics
Mfr.Part #:
7443640470
Datasheet:
Description:

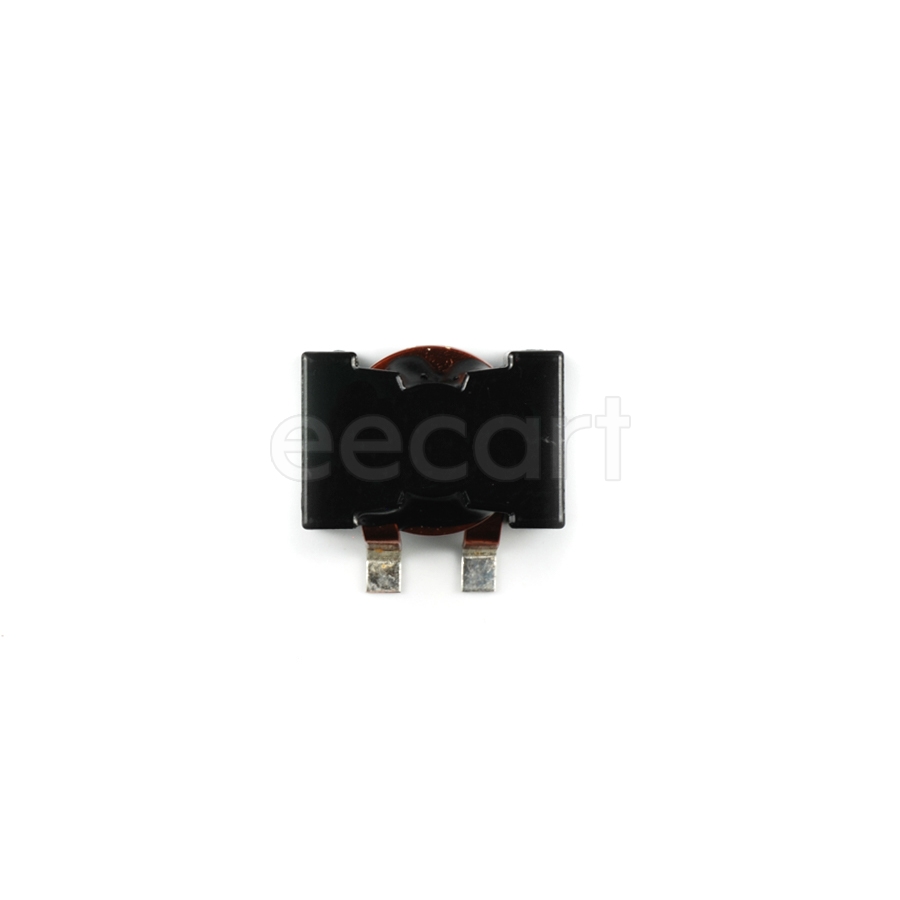

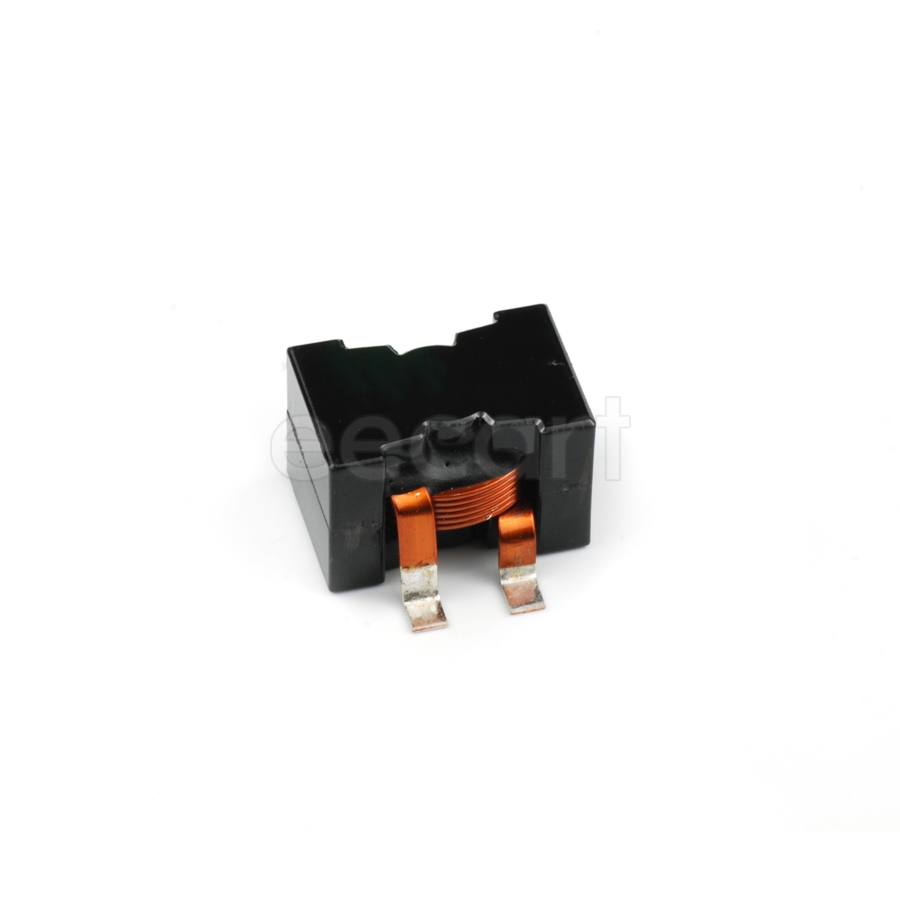

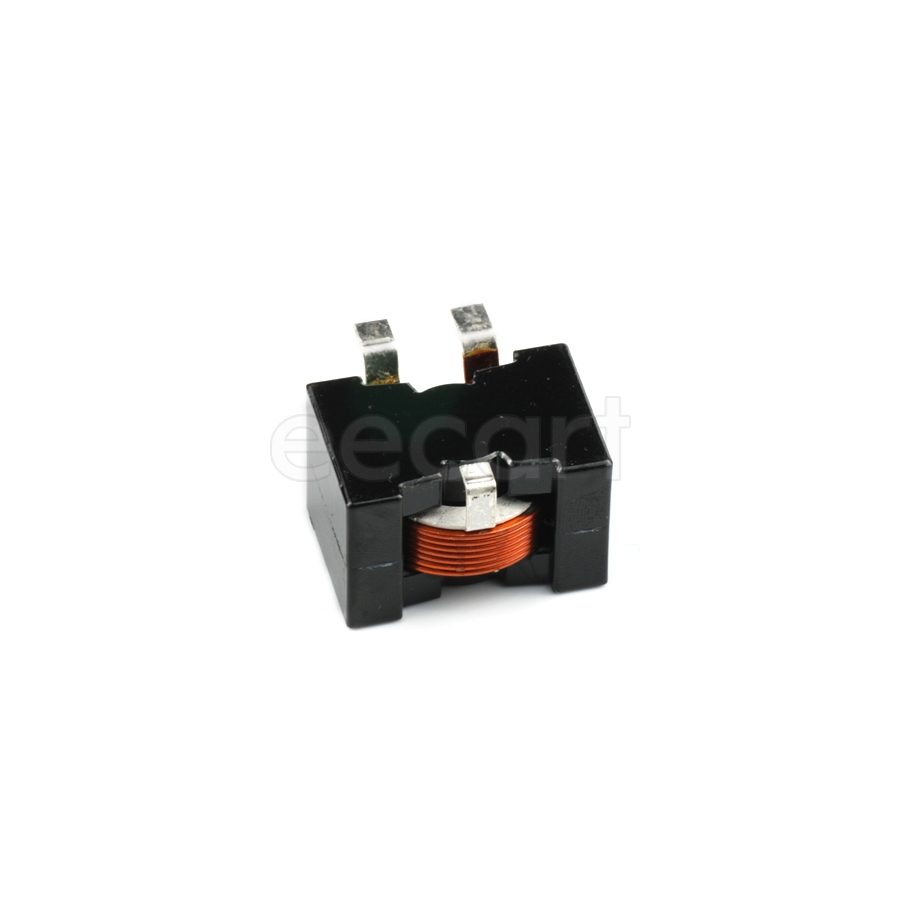

Fixed Inductors 28.50mmL×19.50mmW×18.50mmH SMD/SMT 4.7 µH 15 % 30 A 2.4 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 15 % |
| Height - Seated (Max) | 18.5 mm |
| Length | 28.4988 mm |
| Width | 19.5 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Composition(Kit Type) | Wirewound |
| Height | 18.5 mm |
| Packaging | Reel |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Self Resonant Frequency | 20 MHz |
| Current Rating | 30 A |
| DC Resistance (DCR) | 2.4 mΩ |
| Test Frequency | 100 kHz |
| Shielding | Shielded |
| Inductance | 4.7 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 30 A |
| inductance tolerance | 15 % |
| Max DC Current | 30 A |
| Saturation Current | 78 A |
| Type | Wirewound |
Stock: 476
Distributors
pcbx
pcbxUnit Price$4.66877
Ext.Price$4.66877
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $4.66877 | $4.66877 |
| 10 | $4.66193 | $46.61930 |
| 25 | $4.30409 | $107.60225 |
| 50 | $3.97371 | $198.68550 |
